UAV parts list with price
Everyone has different needs and reasons for building UAV, therefore all kind of UAV parts list with price for helping you to diy one.
Build a UAV
As we know, UAV is mean Unmanned Aerial Vehicles including quadcopter, hexacopter and octocopter etc. Everyone has different needs and reasons for Diy a UAV, but build any UAV is really depends on your requirements, we can not build one UAV that can do everything for you or fulfills your every need, that’s impossible.
Therefore, below listing articles tell you how to build various UAV:
#1. If you want to build a FPV quadcopter such as 250mm size, please check out this article: Building your own drones FPV 250 In a few simple steps. #2. If you build a UAV for taking Aerial photos and videos just like DJI s1000/900, please check out this post we previously did: How to make an octocopter.If you still did not find what you want, go ahead please.
UAV parts list with price
Today, we will list parts of all kind of UAV to you, Different UAV have different requirements in terms of parts as well as price and in most cases, price really affects the quality. For that reason all the parts will be listed with price.
Base on UAV class sizes, we have broken all of the UAV up into 3 types: Quadcopter, hexacopter and octocopter. Therefore you can distinct find one below type that you are interested in to know more about it.

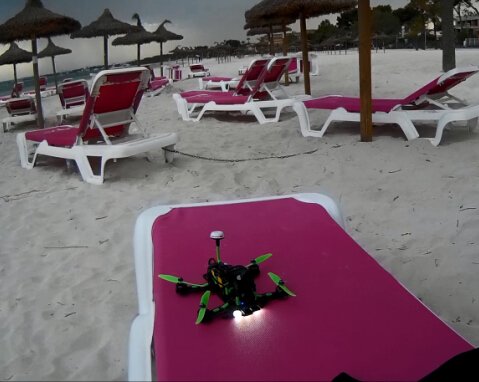

Quadcopter parts list with price
| Parts | Parts List | Price |
| Frame | Xhover MXP230 G10 Version | $49.95 |
| Motor | Cobra 2204 2300Kv *4 | $92.00 |
| ESC | HobbyKing 12A BlueSeries *4 | $36 |
| Propellers | HQProp 5045 Bullnose Glass Composite *4 | $6 |
| Flight controller | Naze32 Acro | $34.99 |
| Lipo battery | 4S 1300mAh 45C – 90C | $27 |
| Receiver | FrSky D4R-II 2.4GHz | $34 |
| Camera | CC1333 Sony Super HAD 600TVL CCD Mini 2.8mm | $27 |
| Transmitter | ImmersionRC 600mW 5.8GHz | $45 |
| Radio Transmitter | FrSky Taranis X9D Plus 16-channel 2.4ghz | $229.97 |
Hexacopter parts list with price
| Parts | Parts List | Price |
| Frame | 6-Axis Multi-Rotor Hexacopter Flame | $26.99 |
| Motor | 1000KV Brushless Motor Outrunner Motor *6 | $63 |
| ESC | RCTimer 30A Brushless ESC SimonK Firmware *6 | $111 |
| Propellers | Efficient 10 inch propeller * 3 pairs | $12 |
| Flight controller | DJI Naza-M V2 Flight Controller with GPS | $159.00 |
| Lipo battery | 2200mAh 3S1P * 2 | $30 |
| Landing Legs | 155mm clearance landing legs VER2 | $49 |
| Camera | GoPro HERO | $187.96 |
| Transmission Sender | DYS Mi200 Switchable 25/200mW VTX 5.8G (40CH) | $14 |
| Radio Transmitter | Radiolink AT9 2.4GHz 9 Channel Controller | $129.00 |

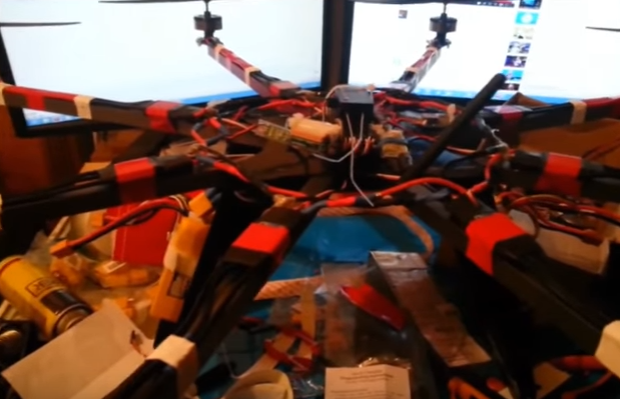

Octocopter parts list with price
| Parts | Parts list | Price |
| Frame | Tarot IRON MAN 1000 Carbon Fiber | $398.99 |
| Motor | Turnigy Multistar 3525-850Kv 14Pole Multi-Rotor * 8 | $252.80 |
| ESC | 30A ESC BLHeli OPTO Brushless *8 | $108 |
| Propellers | Tarot 1355 1355R Propeller CW/CCW * 4 pair | $68 |
| Flight controller | Pixhawk PX4 32Bit with NEO-M8N GPS | $95.80 |
| Lipo battery | 2* 5000Mah 4s | $140 |
| Radio Control | AT9 2.4Ghz 9 Channel Transmitter With R9D Receiver | $120 |
| Camera | Canon 650D | $357 |
| Antenna | CNC GPS Anti-Interference Antenna | $6 |
| Other accessories | Wire,Solder,Sandpaper, GPS Module, BEC | / |
Tip: Images are from internet. Please let us know if you have any questions about anything listed above about UAV parts list with price!
