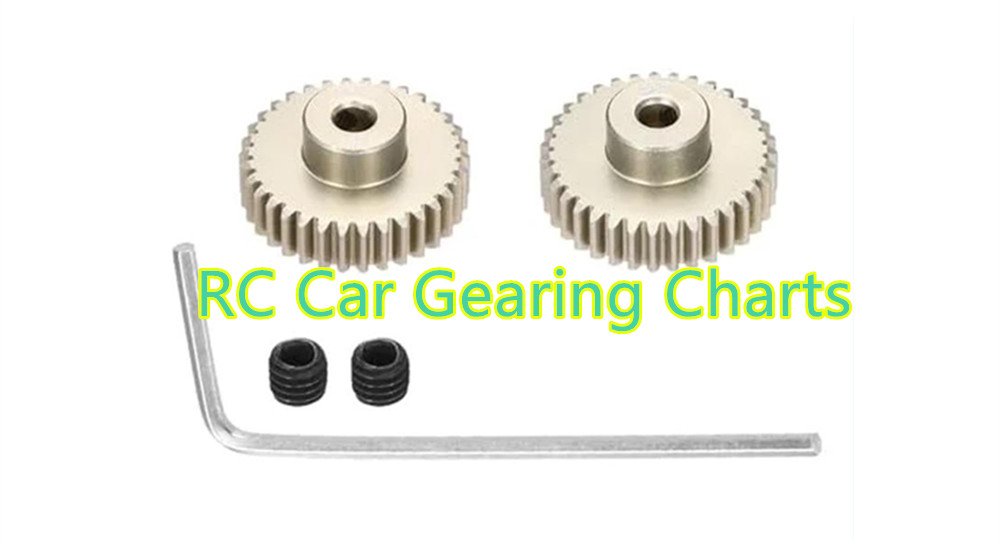

RC Car Gearing Charts: The Ultimate Guide to Optimizing RC Performance
The difference between a sluggish RC car and a track-dominating machine often lies in a single, overlooked detail: proper RC gearing. Whether you’re a basher or a competitive racer, understanding RC gear ratios transforms how your vehicle accelerates, tops out, and handles thermal stress. Ignore your pinion and spur gear setup, and you’re driving blind—overheat motors, sacrifice speed, or burn through batteries. Master gear tuning, and you unlock precision control over your RC car’s personality. Here’s how to leverage RC pinion gear charts, spur gear charts, and digital RC gear ratio calculators to dominate any track.
Why Gear Ratios Are the Heart of RC Performance
Every RC vehicle relies on a symphony of gears to transfer power from the motor to the wheels. The final drive ratio (FDR)—the core metric defining your car’s personality—combines three elements:
- Internal transmission ratio (fixed by your chassis design, e.g., 4.3:1 for the Team Associated SC8E)
- Pinion gear (motor-side gear)
- Spur gear (wheel-side gear)
A lower FDR (e.g., 8:1) means more speed but less torque, ideal for straight-line runs. A higher FDR (e.g., 12:1) delivers explosive acceleration and torque for technical tracks but limits top speed. Misjudge this balance, and you’ll cook electronics.
RC Gear Ratio Calculator: Beyond Basic Math (With Real-World Examples)
Step 1: Final RC Gear Ratio (FDR) Formula
FDR = (Spur Teeth ÷ Pinion Teeth) × Internal Ratio
Example 1: Team Associated SC8E (Internal: 4.3) with 46T spur and 17T pinion:(46 ÷ 17) × 4.3 = 11.63 FDR → Ideal for torque-heavy tracks.
Example 2: Drift car with 68T spur, 26T pinion, and 2.0 internal ratio:(68 ÷ 26) × 2.0 = 5.23 FDR → Prioritizes acceleration for controlled slides.
Step 2: Rollout Calculation for Precision Tuning
Rollout = Tire Circumference × (Pinion ÷ Spur)
Foam Tire Example: 46mm tires with 20T pinion/80T spur:3.1416 × 46 × (20 ÷ 80) = 36.1 mm/rev.
Voltage Shift Adjustment: Upgrading from 2S to 4S? Reduce pinion by 3–4 teeth to offset RPM surge. For 8.5T motors, maintain 45–50mm rollout to prevent overheating.
Step 3: Telemetry Validation
Post-run checks prevent failures:
Motor/ESC >85–90°C → Overgearing (reduce pinion size).
Battery drain spikes → Lower FDR for efficiency.
Pro Tip: Recheck rollout after every run with foam tires—2mm wear alters FDR by 4%.
Pinion RC Gear Chart (Speed/Torque Optimization)
| Pinion Size | FDR Impact | Temp Change | Best For | Model Examples |
|---|---|---|---|---|
| 14T | High FDR (↑15%) | -10°C | Tight technical tracks | Tamiya M-05, FF-036 |
| 18T | Moderate FDR (↑8%) | -5°C | Mixed surfaces | Traxxas Slash 4×4 |
| 20T | Neutral FDR | Baseline | All-round bashing | Arrma Senton |
| 22T | Lower FDR (↓7%) | +12°C | High-speed corners | Team Associated SC10 |
| 24T | Low FDR (↓12%) | +20°C | Long straights | Losi 22S |
| 26T | Very Low FDR (↓18%) | +30°C | Speed runs | Traxxas XO-11 |
| 28T | Extreme Speed (↓25%) | +40°C | 6S+ systems | Arrma Infraction |
| 30T | Drift-specialized | +22°C | Controlled slides | Yokomo BD119 |
| 32T | Drag priority | +45°C | 1/8 scale on-road | TLR Typhon |
| 34T | Competition-only | +50°C | Prepped surfaces | Xray X110 |
The pinion gear (motor-side gear) is the primary driver of your RC car’s final drive ratio (FDR). Smaller pinions (e.g., 14T–18T) increase FDR, boosting torque and acceleration for technical tracks or low-traction surfaces like loose dirt. Larger pinions (26T–34T) reduce FDR, prioritizing top speed in straight-line runs or high-voltage systems (e.g., 6S setups), but risk motor overheating—every +2 teeth ≈ +30°C on the motor. Balance speed and thermal limits based on track layout, motor KV rating, and drivetrain efficiency.
Spur RC Gear Chart (Traction/Load Management)
The spur gear (wheel-side gear) fine-tunes torque delivery and load distribution across your RC drivetrain. Larger spurs (80T–84T) raise FDR, amplifying torque for high-downforce tracks (e.g., carpet circuits) and reducing wheelspin when paired with small pinions (12T–16T). Smaller spurs (64T–68T) lower FDR, easing motor load in low-grip conditions (e.g., wet surfaces) and extending battery life. Always verify gear pitch compatibility (e.g., 48P vs. MOD1) to prevent mesh failure or cogging issues.
| Spur Size | FDR Impact | Tire Compatibility | Surface/Grip | Paired Pinion |
|---|---|---|---|---|
| 64T | Very Low FDR | Rubber (low wear) | Low-traction dirt | 26T–30T |
| 68T | Low FDR | Hybrid foam/rubber | Loose gravel | 22T–26T |
| 70T | Moderate FDR | All-purpose | Mixed conditions | 20T–24T |
| 72T | Neutral | Standard rubber | Club tracks | 18T–22T |
| 74T | Moderate High FDR | High-grip rubber | High-traction asphalt | 16T–20T |
| 76T | High FDR | Foam (controlled wear) | Carpet/oval | 15T–18T |
| 78T | Very High FDR | Foam (fresh) | Technical circuits | 14T–17T |
| 80T | Torque focus | Competition foam | High-downforce tracks | 13T–16T |
| 82T | Extreme torque | Specialized foam | Wet/low-grip | 12T–15T |
| 84T | Crawler/rock focus | Heavy-duty rubber | Off-road obstacles | 10T–14T |
Tips:
- High-traction surfaces (carpet, rubber): Lower FDR to exploit grip without wheelspin
- Foam tires: Recheck rollout after every run—2mm wear on 46mm tires alters FDR by 4%
- Voltage shifts (e.g., 2S to 4S): Reduce pinion by 3–4 teeth to offset RPM surge
- Drift cars: Higher FDR prioritizes punch over top speed—critical for controlled slides
Your RC car’s gearing isn’t set in stone. Track conditions, tire wear, and even ambient temperature demand adjustments. Start with your motor’s recommended rollout (e.g., 45mm for 8.5T), then tweak one gear at a time. Monitor temperatures relentlessly. Remember: A $2 pinion can do what a $200 motor can’t.
Pro insight: Chassis like the Tamiya M-08R include optional aluminum pinions (e.g., 20T) and hardened spurs—swap combos in under 90 seconds for on-the-fly tuning.
