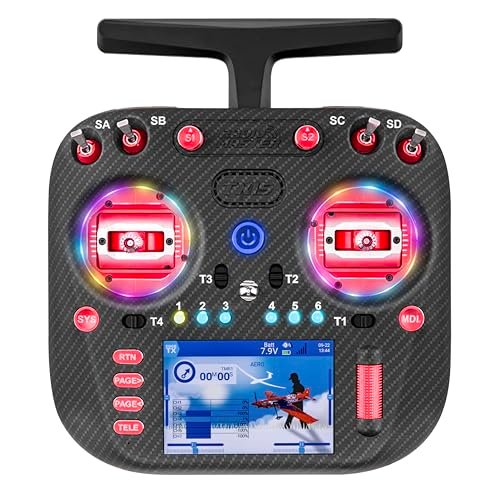

Radiomaster TX15 Max ELRS Transmitter, 16CH EdgeTX Radio Controller with AG02 CNC Hall Gimbals, 3.5″ IPS Touchscreen, RGB Gimbal Lights, USB‑C, Foldable Antenna, Mode 2

About this item

• 【Radiomaster TX15 Max ELRS Transmitter】Features the Semtech LR1121 chip supporting 2.4GHz and 900MHz bands. Equipped with an STM32H7 processor and pre‑installed EdgeTX firmware to handle complex Lua scripts. Ideal for RC models demanding high‑speed data processing.
• 【AG02 CNC Hall Gimbals】Includes AG02 full CNC aluminum hall sensor gimbals with adjustable travel and spring tension. The gimbals feature RGB LED light rings compatible with LUA script customization. Delivers accurate and precise control input for RC operations.
• 【3.5" High‑Brightness Touch Screen】TX15 Max ELRS Transmitter comes with a 3.5‑inch IPS touch display (480x320 resolution) with 600 nits brightness. Provides clear visibility in outdoor environments. The touch interface assists with menu navigation and model configuration setup.
• 【Power Management & Portability】Built‑in smart balance circuit supports 2S LiPo or 18650 cell power supply configurations (Batteries Not Included). The foldable antenna design enables compact storage and easy portability. Equipped with a built‑in attitude sensing module, supporting motion gesture control mapping via EdgeTX system settings.
• 【Cooling & Connectivity】An active cooling system with aluminum heat sink and temperature‑controlled fans maintains operational stability. The USB‑C port handles charging, simulator (SIM) connectivity, and firmware updates. Onboard storage provides access to model presets and telemetry files.
• 【Package Includes】1 * TX15 Max Radio Controller, 1 * Signature Carry Case, 1 * Short 2-position Latching Shoulder Toggle Switch Assembly, 1 * Short 2-position Momentary Shoulder Toggle Switch
