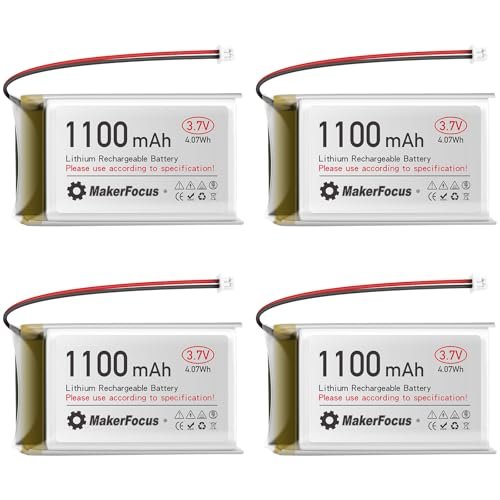

MakerFocus 3.7V 1100mAh Lithium Polymer Rechargeable Battery for ESP32 4pcs

About this item

• Overcharge Protection: When charging the battery, when the voltage reaches the highest battery voltage (4.2V), the protection board will automatically power off and shut down, indicating that it will not continue to charge when fully charged, form an overcharge protection
• Over-discharge Protection: When the battery is about to run out and the voltage is as low as 3.0V, the protection board will also be turned off and can no longer be discharged, forming an over-discharge protection effect
• Short Circuit Protection: When an accidental short circuit occurs, the protection board will automatically shut down within a few milliseconds and will not be powered on again. Note that the cell is short-circuited (not through the protection board). The protection board will also fail due to continuous high current, or the components are heated and damaged
• Charging Method: Recommended charging current is 0.22A, with a maximum of 0.55A. Recommended discharge current is 0.22A, the maximum is no more than 0.55A, the protection board is equipped with mos tube, the overcurrent protection (instantaneous) is 1.6-2.2A, and the charging voltage setting is recommended to be 4.2V
• Widely Application: With JST 1.25 plug, these lithium polymer batteries can be used for development board whose plug is SH1.25-2, such as ESP32 LoRa V3, ESP32 LoRa V4, Wireless Tracker, Mesh Node T114, Mesh Node T096 and electronic devices
• Note: Overcurrent protection is not a panacea, please do not continue to charge and discharge with large current, or the current and voltage beyond the range, otherwise the protection board will be damaged and invalid
