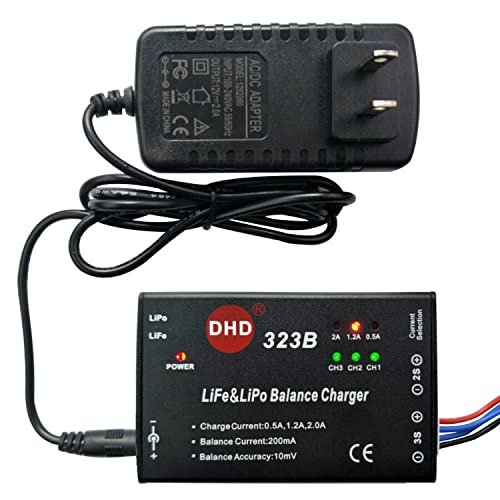

SHHAO 20W 2A RC Battery Balance Charger for 2S 3S LiPo Life Battery Pack RC Airsoft Electric Water batteres
Brand: SHHAO
$25.90
Prices are current at time of posting and may change at any time. Redeem now to lock in your price!
See Deals at Amazon Now About this item
Brand:SHHAO | Color:black | Input Voltage:12 Volts (DC) | Product Dimensions:0.87"D x 0.87"H | Output Voltage:4.2 Volts (DC)
ASIN: B08Y8D98FP
Weight: 10.5 ounces
Volume: 0.86614 x 1.9685 x 0.86614 Inches
Share this deal with your friends:
Product Description
- 【Function】LIPO LIFE 2s or 3S chargers, DC 12V2A input, charging current 0.5A-1.2A-2A optional. LED light indicator, simple and intuitive, charging each CELL separately, high efficiency and high precision. CH3CH2CH1 green light flashing. Indicating balance charging, C3C2C1 green light is always on, indicating full. charger small size (77x50x22mm), light weight (78g), aluminum shell heat dissipation fast.
- 【Charging steps】1-Connect the charger and power supply, and all LED lights up successively. Select charging current: 0.5A-1.2A-2A. 2--Select the battery type (battery type selection toggle switch)。 LIFE battery mode (each cell voltage is 3.6V after full charged) or LIPO battery mode (each cell voltage is 4.2V after full charged)。 Note：This function must be select before the battery connection to charger.
- 【Charging steps】3-Connect the battery to the charger (do not connect 2S and 3S batteries at the same time). the green LED begin to flash which means balance charging, If all green LED stop flashing and remains lighting, the battery is full
- 【Repairable low voltage battery】 If the voltage of any cell is less than 3V, the charger will enter the low current mode. After 1 minute of charging, if all the green leds blink quickly, the battery has been damaged. If the indicator blinks normally, the charger continues to trickle charging,When all the cells reach 3V, the battery will enter the high current charge until full.
- 1-Connect the battery to the charger,the green LED will start flashing,indicating normal charging; If the indicator is off,please check the battery is good or not then the battery voltage is too low (<1.5V/CELL);2-If the input voltage is lower than 10V or more than 18V, the charger indicator flashes to stop charging, should restart the charger, make it out of the alarm
